Marka: Sunnysky
Warranty Period: 24 Month

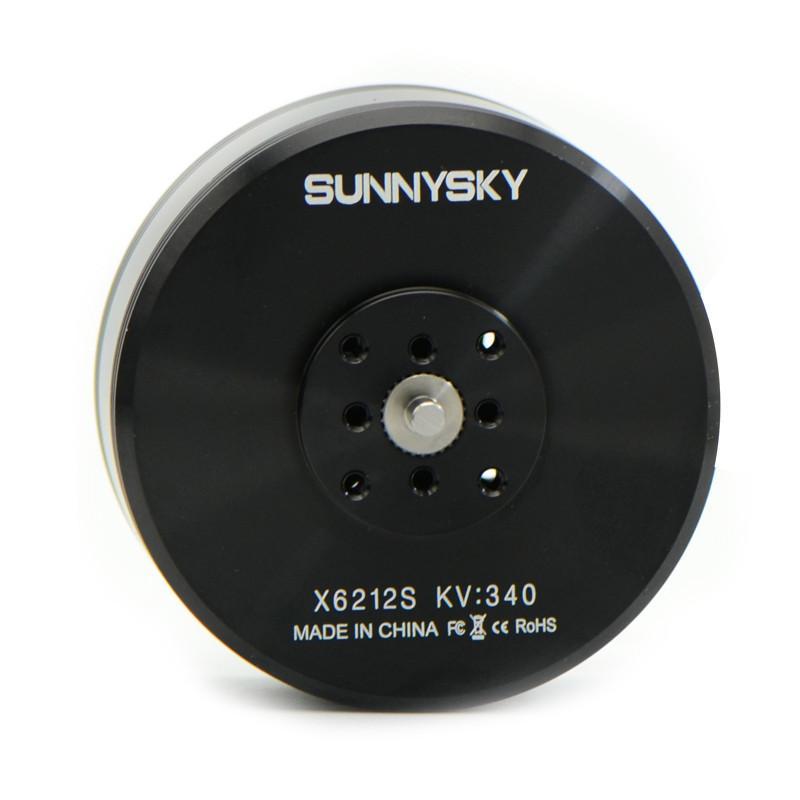

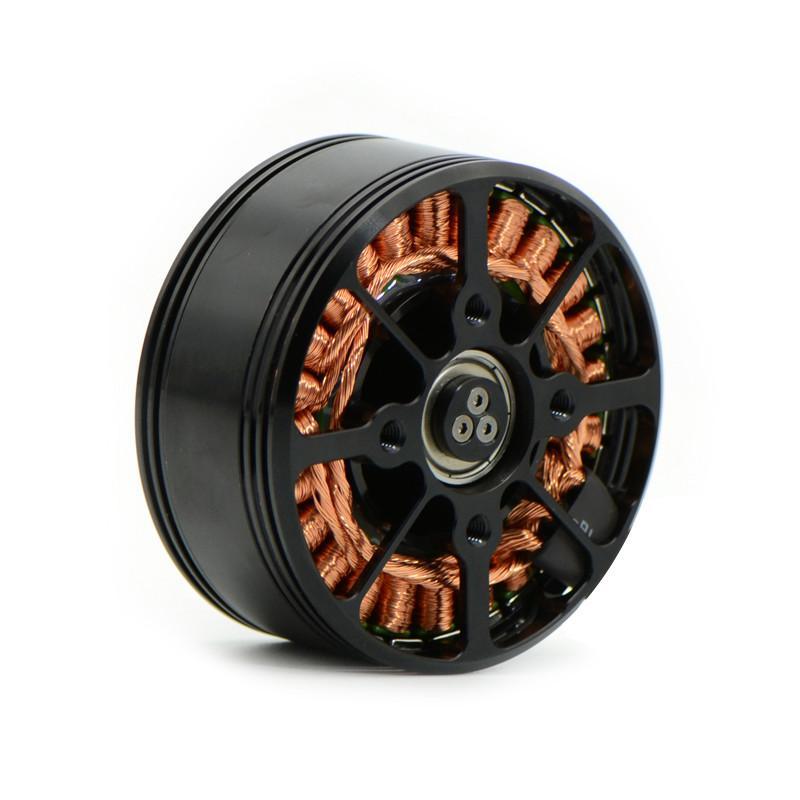

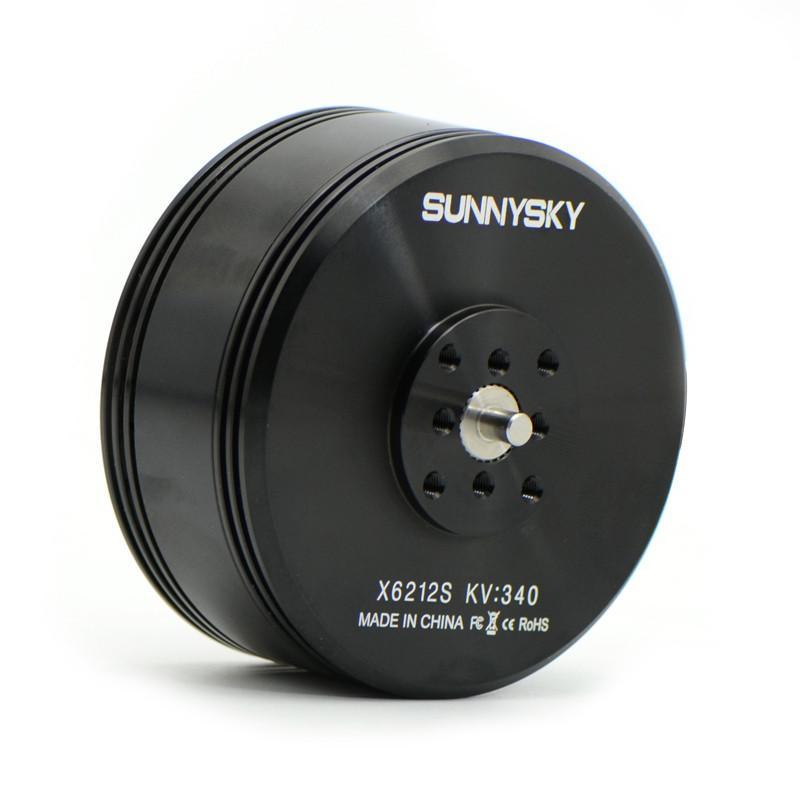

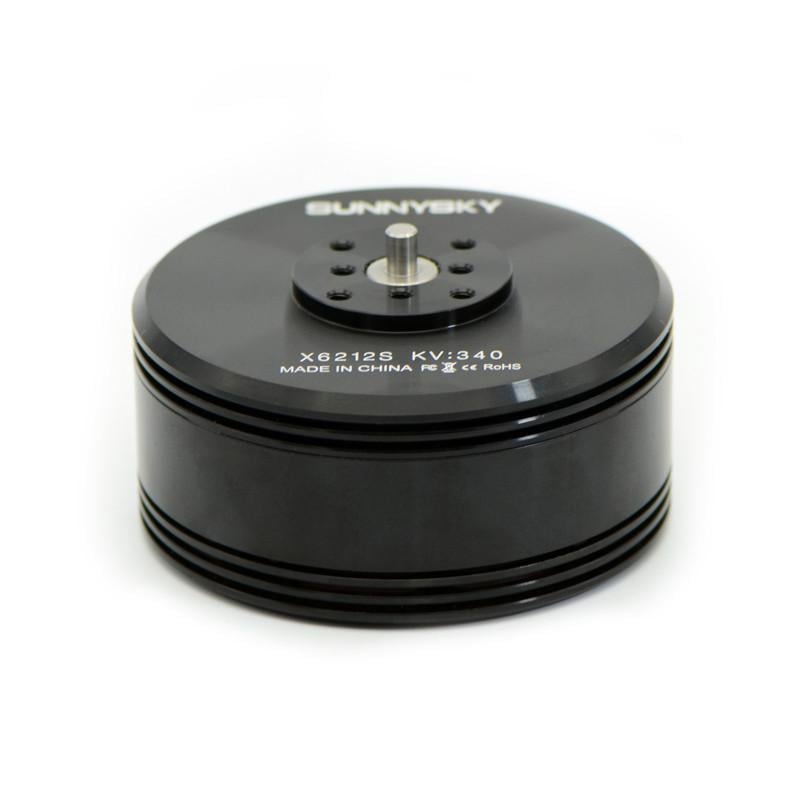

SunnySky X6212S 340 Kv Drone Motoru
Stok Kodu: ABGRVX47Marka: Sunnysky
Warranty Period: 24 Month
Ürün Fiyatı
4.497,19 TL
Sık Sorulan Soruları Gör
Technicial Specifications:
| Stator Diameter | 62mm | rotor diameter | 69.3mm |
|---|---|---|---|
| Stator Thickness | 12mm | shaft diameter | 4mm |
| Stator Slots | 24 | Body Length (without shaft ) | 34.5mm |
| Rotor Poles | 28 | body length | 40mm |
| Engine Kv | 340 | Max Lipo Cell | 6S |
| No-load current | 1.8A / 10V | ESC | 80A |
| motor resistance | 50mΩ | Recommended Prop (inch) | 20 * 6.5 / 22 * 6.6 |
| Maximum Continuous Current | 56A / 30s | Recommended single take-off weight | ≤2750g |
| Maximum Continuous Power | 1250W | ||
| Weight | 323 grams |
| Prop (inch) | Voltage (V) | Amps (A) | Thrust (GF) | Watts (W) | Yield (g/W) | load temperature at 100% gas |
|---|---|---|---|---|---|---|
| 20 x 6.5 | 22.2 | 1.9 | 500 | 42 | 11.85 | 62℃ |
| 3.2 | 750 | 71 | 10.56 | |||
| 4.7 | one thousand | 104 | 9.58 | |||
| 6.1 | 1250 | 135 | 9.23 | |||
| 7.9 | 1500 | 175 | 8.55 | |||
| 9.7 | 1750 | 215 | 8.13 | |||
| 11.7 | 2000 | 260 | 7.70 | |||
| 14.5 | 2300 | 322 | 7.15 | |||
| 17.1 | 2600 | 380 | 6.85 | |||
| 20.7 | 3000 | 460 | 6.53 | |||
| 25.9 | 3500 | 575 | 6.09 | |||
| 30.9 | 4000 | 686 | 5.83 | |||
| 37 | 4500 | 821 | 5.48 | |||
| 43.8 | 5000 | 972 | 5.14 | |||
| 46.5 | 5300 | 1032 | 5.13 | |||
| 22*6.6 | 22.2 | 1.9 | 500 | 42 | 11.85 | 72℃ |
| 2.9 | 750 | 64 | 11.65 | |||
| 4.4 | one thousand | 98 | 10.24 | |||
| 5.6 | 1250 | 124 | 10.05 | |||
| 7.2 | 1500 | 160 | 9.38 | |||
| 9 | 1750 | 200 | 8.76 | |||
| 10.8 | 2000 | 240 | 8.34 | |||
| 13.2 | 2300 | 293 | 7.85 | |||
| 15.6 | 2600 | 346 | 7.51 | |||
| 19 | 3000 | 422 | 7.11 | |||
| 23.5 | 3500 | 522 | 6.71 | |||
| 28.4 | 4000 | 630 | 6.34 | |||
| 33.6 | 4500 | 746 | 6.03 | |||
| 40.1 | 5000 | 890 | 5.62 | |||
| 47.2 | 5500 | 1048 | 5.25 | |||
| 52.2 | 6000 | 1159 | 5.18 | |||
| 54.5 | 6200 | 1210 | 5.12 |
