Holybro Kakute F7 V1.5 STM32F745 Uçuş Kontrol W / OSD Barometre FPV Drone İçin
Stok Kodu: CGLNP456Marka: Other
Ürün Fiyatı
2.540,78 TL
Sık Sorulan Soruları Gör

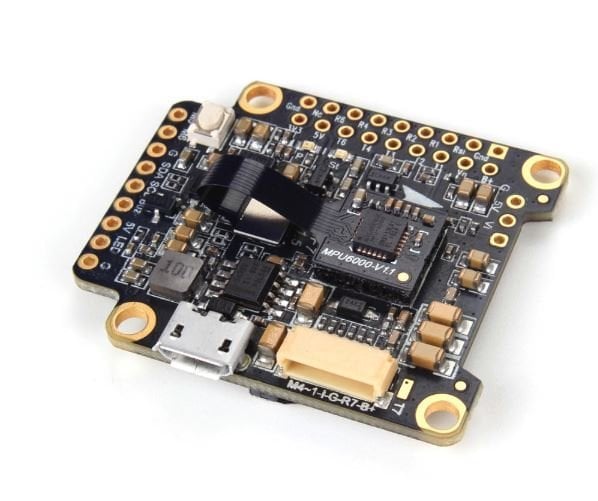

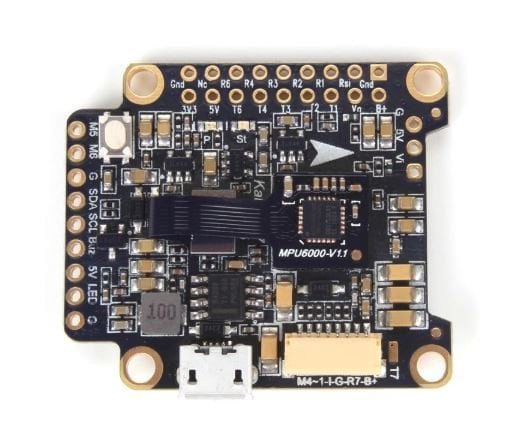

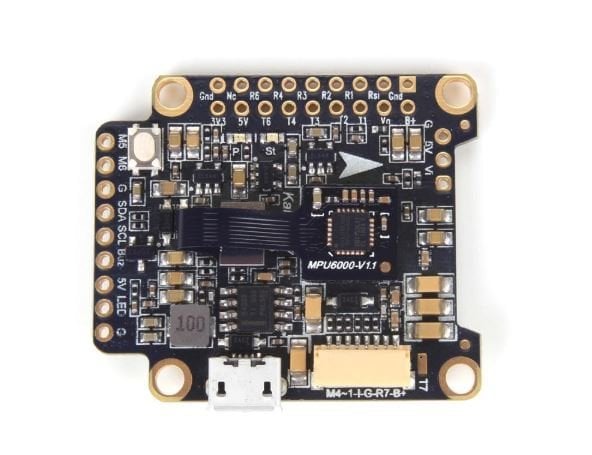

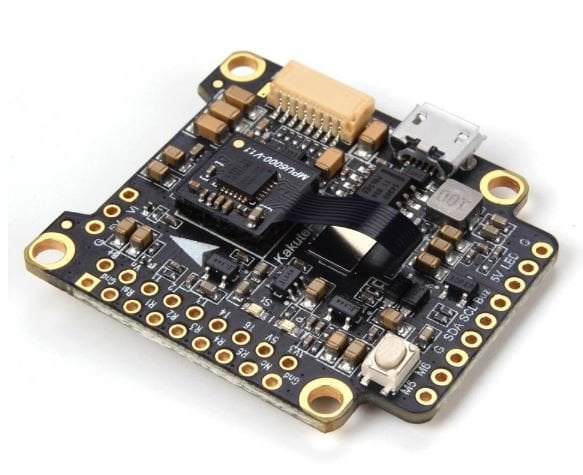

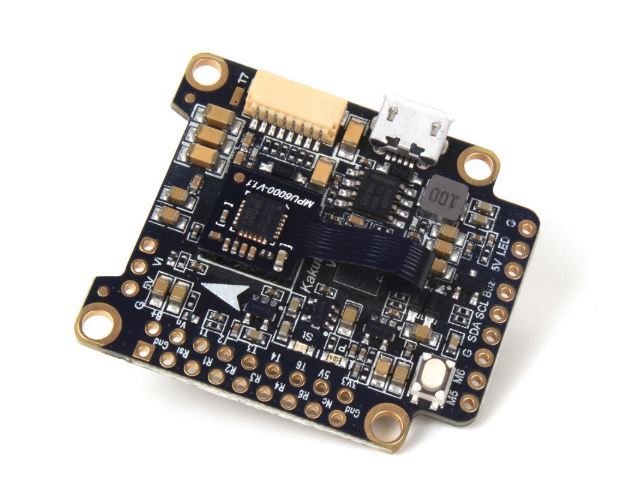

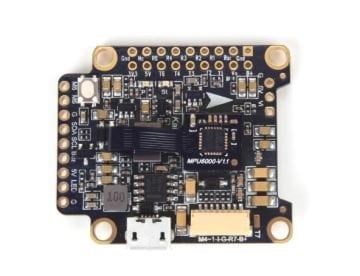

The Holybro Kakute F7 flight controller makes it easy to build your multi-rotor. flight controller (FC)
and the screenshot (OSD) together. Layout of Kakute F7
makes it easy to wire other multi-rotor components while keeping the build clean and tidy. IMU upgraded to MPU6000, Redesigned and more reliable damping structure
Features
• MCU: STM32F745 32-bit processor
• IMU: MPU6000 (SPI)
• Barometer: BMP280
• Current Sensor: Maximum measurable value of approx. 130 amps
• USB VCP Driver (all UARTs) can be used simultaneously; USB doesn't take a UART)
• 6 hardware UARTS (UART1,2,3,4,6,7)
• All UARTS hardware supports inversion. SBUS, SmartPort and other inverted protocols,
works on any UART without "reverse attack".
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers
not supported.
• TF card for blackbox recording
• Dimensions: 35x41x7mm (height includes foam mounted gyro board)
• Mounting Holes: Standard 30.5mm square - hole center
• Weight: 8g
Features
• Betaflight supports Butterflight and Cleanflight.
• Betaflight OSD.
Change PIDs, set common configuration parameters, and change video transmitter channel and power level using your transmitter sticks and glasses.
• Built-in soft mount. The IMU ("gyro") chip on this board is vibration isolator
mounted on foam. This means that the card itself does not need to be soft mounted.
• High performance / low noise / high precision IMU. 6-axis gyroscope and
MPU6000 with accelerometer.
• Ready for autonomous flight:
Integrated BMP280 barometer and SCL/SDA pads for use with external GPS/magnetometer units.
• Dedicated bootloader button for easy software flashing.
• Low profile design fits even in very compact frames.
• Input voltage 7v to 42v. Boost the board directly from flight pack up to 6S (only on pad "B+"
).
• Automatic voltage monitoring. No need to run a separate vBat cable for voltage monitoring;
Kakute F7 monitors supply voltage directly from the power supply.
• Filtered voltage output for clean, noise-free video. Built-in regulators
, receiver, video transmitter, FPV
Outputs 5v up to 2 amps and 3.3v up to 200 mA to power peripherals such as cameras or LED strips.
• Supports BLHeli pass-through for easy ESC upgrade and configuration. English Handbook
Click for .
Package Included:
1x Kakute F7 flight controller
1x foam
1x FFC
1x JST SH 8pin 150mm cable
