Holybro Kakute F7 V1.5 Uçuş Kontrolörü & Atlalt HV V2 40CH VTX ve 65A BL_32 Tekko32 F3 Metal 4in1 ESC Combo
Stok Kodu: FHLPQUY4Marka: Other
Ürün Fiyatı
8.443,22 TL
Sık Sorulan Soruları Gör

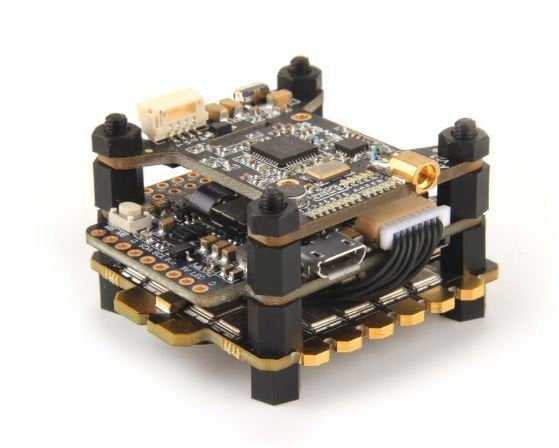

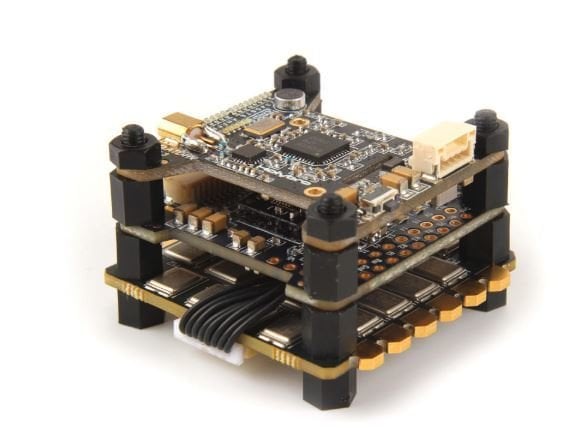

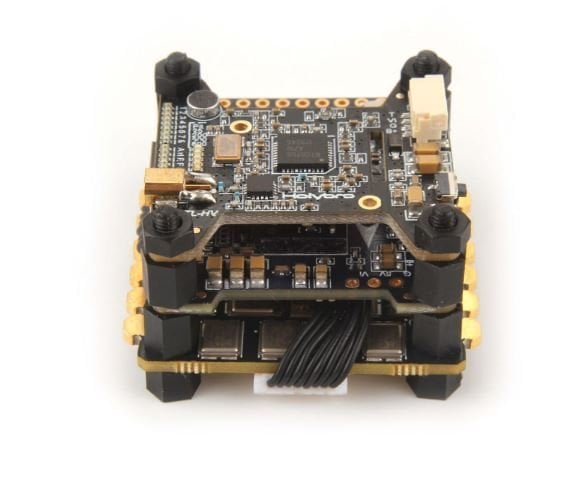

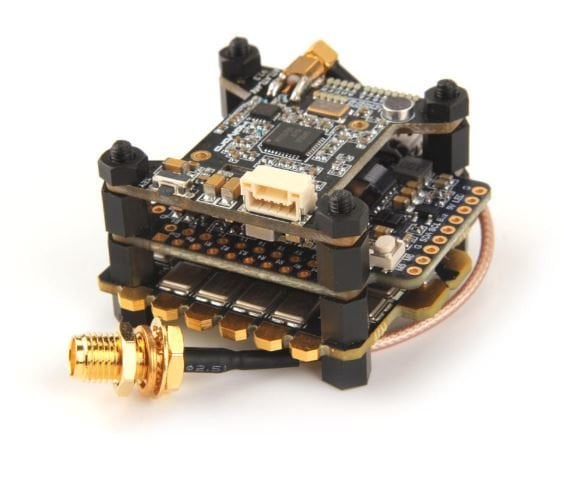

Holybro Kakute F7 V1.5 Flight Controller & Atlalt HV V2 40CH VTX & 65A BL_32 Tekko32 F3 Metal 4in1 ESC Combo
Specification:
Brand Name: Holybro
Item Name: F7 FC & 65A 4in1 ESC and 5.8G 40CH VTX Stack Combo
Stack Height: 26mm
Kakute F7 V1.5 Flight Controller Tekko32F3 Metal 4-in-1 ESC
Atlalt HV V2 40CH VTX
Specification:
Brand Name: Holybro
Item Name: F7 FC & 65A 4in1 ESC and 5.8G 40CH VTX Stack Combo
Stack Height: 26mm
Kakute F7 V1.5 Flight Controller
Brand Name: Holybro
Item name: Kakute F7 V1.5
MCU: STM32F745 32-bit processor
IMU: MPU6000 (SPI)
Barometer: BMP280
Current Sensor: Maximum measurable value of approx. 130 amps
Current Sensor: Maximum measurable value of approx. 130 amps
USB VCP Driver (all UARTs can be used simultaneously; USB does not take a UART)
6 hardware UARTS (UART1,2,3,4,6,7)
All UARTS hardware supports reversing. SBUS, SmartPort, and other inverted protocols work on any UART without a "reverse attack".
It only supports serial receivers (SBUS, iBus, Spektrum, Crossfire). PPM and PWM receivers are not supported.
TF card for blackbox diary
Dimensions: 35x41x7mm (including foam-mounted gyroscope board in height)
Mounting Holes: Standard 30.5mm square - hole center
Weight: 8g
Brand Name: Holybro
Model: Tekko32F3 Metal
F3 (M4 Core) MCU runs BLHELI32 firmware, MCU runs at 108Mhz
4-in-1 built-in analog current sensor and TLM function (no current reading via TLM)
Using metal case mosfet for better heat dissipation
Supports Lipo 4-6S
Har. Cover required for 6s (470uf 35v. for 6s use.)
Dimensions: 42 x 42 mm
Mounting holes: 30.5 × 30.5 mm
Weight: 12g
To realise:
Airflow is essential if you want to run this 4-in-1 at high current.
Input cable (lipo to 4in1) should be well soldered and at least 12AWG.
Atlalt HV V2 40CH VTX
Item Name: 5.8G 40CH 25/200/500/800mW FPV Transmitter
Model: Atlatl HV V2
Transmission Output Power: 25mW / 200mW / 500mW / 800mW Switchable
Audio: 6MHz + 6.5MHz Mono
Antenna Connector: MMCX
Input Voltage: 7-28V (2-6S Lipo)
Size: 35 (L) x 25 (W) x 7 (H) mm
Mounting Hole: 30.5x30.5mm
Weight: 9.3g
Package Content :
1x Kakute F7 Flight Controller
1x Atlalt HV V2 5.8G FPV Transmitter 1x 80mm SMA to MMCX Cable
1x 150mm 4pin JST GH wire
1x Tekko32 F3 Metal 4-in-1 ESC
1x 470uF 35V Electrolytic Capacitor
1x 8pin - 8pin 1mm pitch 65mm Cable
1x 8pin - 8pin 1mm pitch 25mm Cable
