Eachine 148 FPV Kamera + Video Transmitter Set

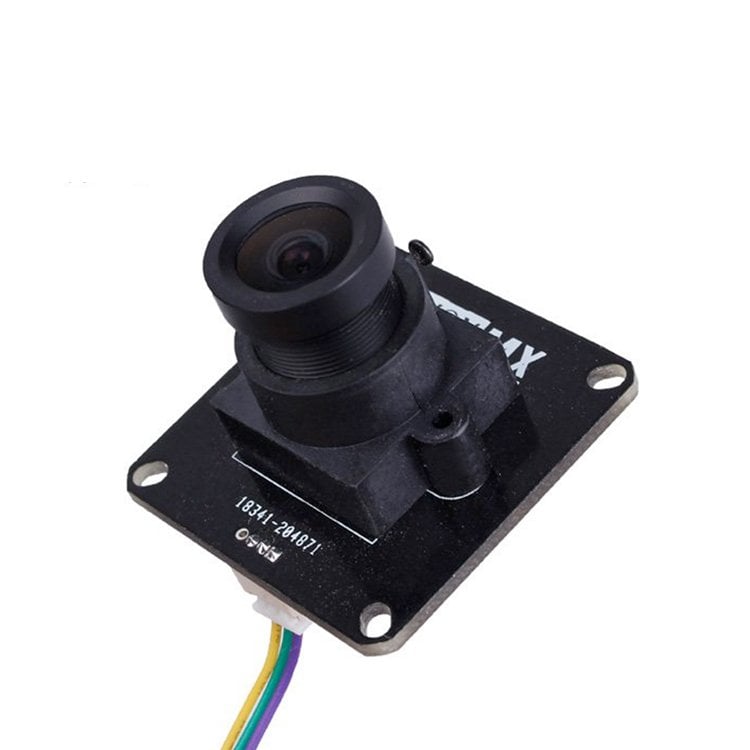

Camera Features

Lens: 2.6mm IR coated

FOV: 127°diagonal 110°horizon

l Power: 3.6-5.5V

Type:PAL / NTSC Current: 60mA@11.1V

Sensor: 1/3” CMOS

Resolution: 700TVL

Operating temperature: -20° C to 70° C

Camera size: 32 X 32 X 23.5mm

Lens size: 15.3mm X 14mm

Weight: 12g

Usage: compatible with general 5.8G transmitter

Transmitter Features

Part No: ET200 Modulation Mode: FM Supported Video Format: NTSC/PAL Output Resistance: 50 Ohm Output Signal Strength: 23~24dBm. Output power: 200mW Operating channel: 32CH Operating voltage: 7V - 24V Operating wave: 190mA Operating temperature: -10~85 Video Bandwidth: 0~8.0 MHz Video Input Level: 0.8~1.2 Vp-p Video Input Resistance: 75 Ohm Audio Input Level: 0.5~2.0 Vp-p Audio Input Resistance: 10K Ohm Audio carrier: 6.5MHz Transmitter Connector: optional RP-SMA female (antenna connector: RP-SMA male) and SMA female (antenna connector: SMA male) Size: 38mm x 22.5mm x 6mm Weight: 6g(Without Antennaw) Transmitter Frequency: 5645-5945MHz 200mW power output Transmitting Distance > ~1500m (In open area)
