Marka: DJI

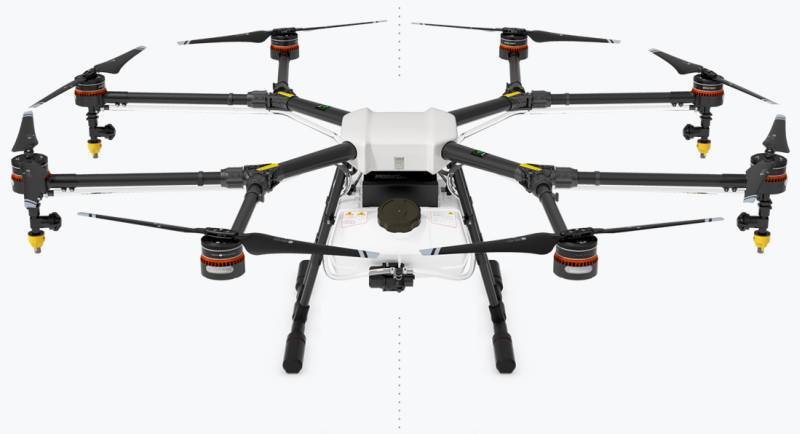

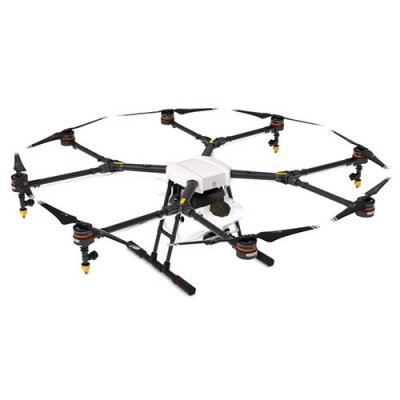

DJI Agras MG-1S Zirai İlaçlama Dronu
Stok Kodu: KLRTVWZ4Marka: DJI
Sık Sorulan Soruları Gör
DJI AGRAS MG1-S TECHNICAL SPECIFICATIONS
drone
| Cross Length | 1515mm |
|---|---|
| Sleeve Length | 625mm 1471 mm×1471 mm×482 mm(Open arms, excluding propellers) |
| Dimensions | 1471 mm×1471 mm×482 mm(Open arms, excluding propellers) 780 mm×780 mm×482 mm(Arms Folded) |
SPRAY SYSTEM
| Liquid Tank | |
|---|---|
| Volume | 10 Liters |
| Standard Operating Weight | 10 kg |
| Maximum Battery Size | 151mm×195mm×70mm |
| Nozzle | |
| Model | XR11001VS(0.379L/min) |
| Recommended Models | XR110015VS(0.591L/min) TK-VK6 (0.393L/min) TK-VK8(0.525L/minute) |
| Quantity (Spray Head) | 4 |
| Drop Size | XR11001VS: 130 - 250 µm (Depends on working environment and spraying speed) |
FLIGHT PARAMETERS
| Total weight | 10 Kg (Excluding Batteries) |
|---|---|
| Standard Takeoff Weight | 23.8 kg |
| Maximum Takeoff Weight | 24.8 kg (Above Sea Level) |
| Maximum Payload/Thrust Ratio | 1.71 (23.8 kg at take-off weight) |
| Battery | DJI MG-12000S |
| Power consumption | 6400W |
| Hover Power Consumption | 3800 W(@ 23.8 kg at take-off weight) |
| Hover Time | 22 minutes(@12000 mAh & 13.8 kg takeoff weight) 10 minutes(@12000 mAh & 23.8 kg takeoff weight) *Hover time measured at sea level and low wind (3m/s). |
| speed | 7 m/s |
| Max Speed | 12 m/s (with P & F Mode, GPS) 15m/s (A Mode) |
| Maximum Service Altitude | 2000m |
| Working Temperature | 0 to 40 degrees |
REMOTE CONTROL
| Model | DLG60A |
|---|---|
| Operating Frequency | 2.400 GHz - 2.483 GHz |
| Usage Distance | 1 km (Unobstructed, undistorted) |
| EIRP | ?20 dBm |
| Built-in Battery | 9000mAh,2S LiPo |
| Output Power | 7W |
| Working Temperature | -10 to 40 degrees |
RADAR MODULE
| Detection Distance | 1-5m |
|---|---|
| Working Distance | 1.5-3.5m |
| Sensibility | < 10 cm |
FLIGHT DRIVE SYSTEM
| Engine | |
|---|---|
| Stator Size | 60×10mm |
| KV | 130rpm/V |
| Maximum Drive | 5.1kg/rotor |
| Maximum Power | 770W |
| Weight | 280gr (With Cooling Fan) |
| propellers | |
|---|---|
| Materiel | high performance plastic |
| Diameter/Pitch | 21×7 inches |
| Weight | 58gr |
| ESC | |
|---|---|
| Maximum Current (Continuous) | 25A |
| Operating voltage | 50.4V(12S LiPo) |
| Driver PWM Frequency | 12kHz |
