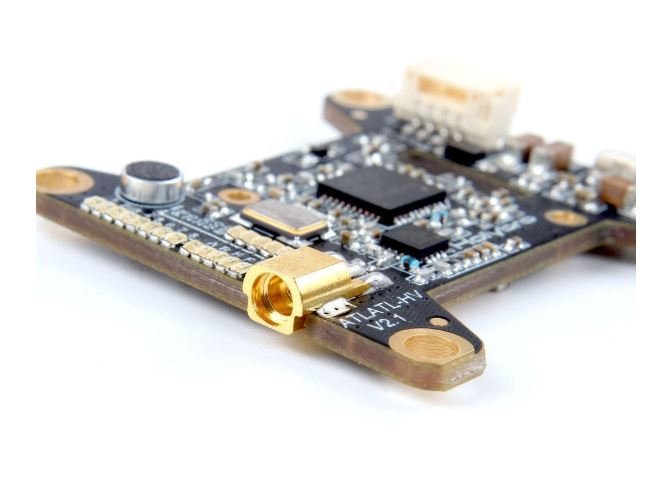

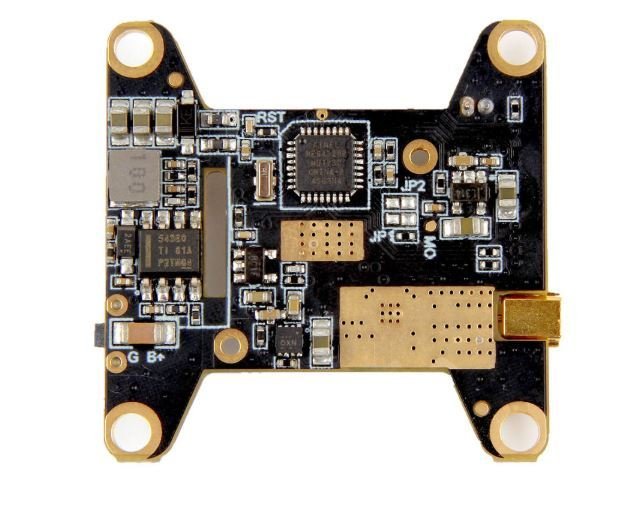

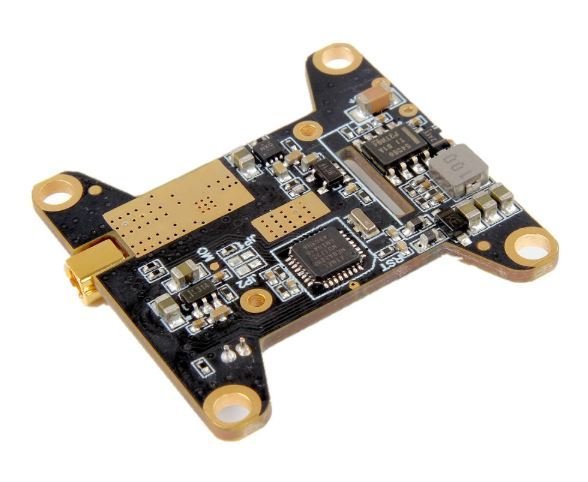

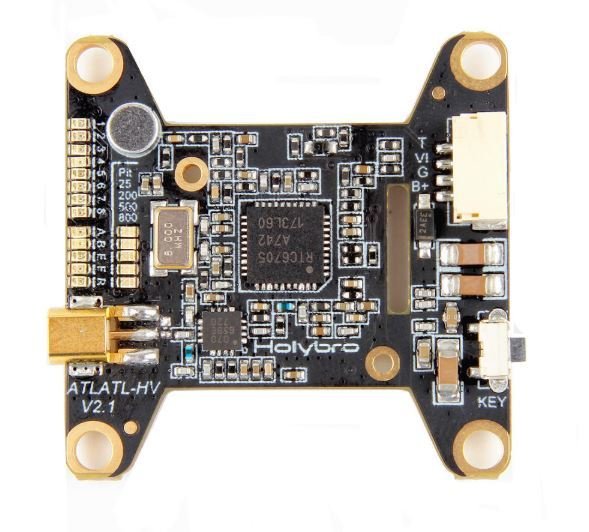

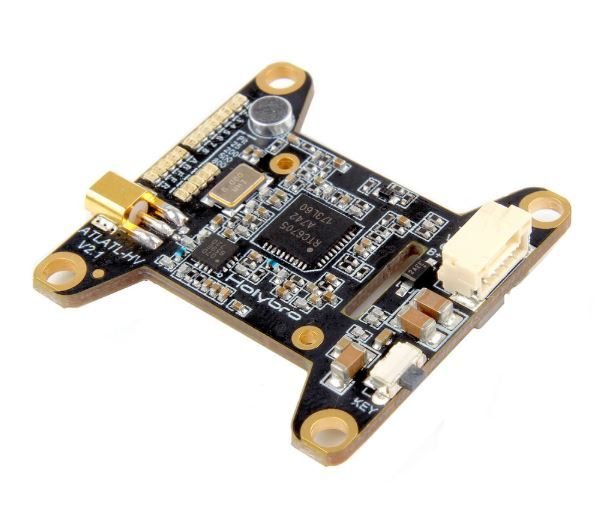

30.5x30.5mm Holybro Atlatl HV V2 5.8G 40CH 25/200/500 / 800mW FPV Verici Dahili Mikrofon
Stok Kodu: AGNVW567Marka: Diğer
Ürün Fiyatı
1.888,88 TL
Sık Sorulan Soruları Gör
30.5x30.5mm Holybro Atlatl HV V2 5.8G 40CH 25/200/500/800mW FPV Transmitter Built-in Microphone
Properties:
Product Name: 5.8G 40CH 25/200/500/800mW FPV Transmitter
Model: Atlatl HV V2
Properties:
Product Name: 5.8G 40CH 25/200/500/800mW FPV Transmitter
Model: Atlatl HV V2
Transmission Output Power: 25mW / 200mW / 500mW / 800mW Switchable
Audio: 6MHz + 6.5MHz Mono
Antenna Connector: MMCX
Input Voltage: 7-28V (2-6S Lipo)
Audio: 6MHz + 6.5MHz Mono
Antenna Connector: MMCX
Input Voltage: 7-28V (2-6S Lipo)
Size: 35(L) x 25(W) x 7(H)mm
Mounting Hole: 30.5x30.5mm
Weight: 9.3g
Features:
- Fatshark, ImmersionRC, etc. Compatible with all major FPV receivers from vendors such as
. standard set of 40 channels: bands A, B, E, Fatshark and Raceband.
- SmartAudio input allows remote control with flight controller (where supported). Change channel, transfer power and more from Betaflight OSD, flight controller USB port, Taranis Lua Script and more.
- In cases where SmartAudio is not used, all parameters can be controlled by pressing the button on the side of the unit.
- Channel, Band and Power LED Indicators. Easily check the VTX Parameters by looking at the quad.
- Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and easily switch to 800 mW for freestyle.
Mounting Hole: 30.5x30.5mm
Weight: 9.3g
Features:
- Fatshark, ImmersionRC, etc. Compatible with all major FPV receivers from vendors such as
. standard set of 40 channels: bands A, B, E, Fatshark and Raceband.
- SmartAudio input allows remote control with flight controller (where supported). Change channel, transfer power and more from Betaflight OSD, flight controller USB port, Taranis Lua Script and more.
- In cases where SmartAudio is not used, all parameters can be controlled by pressing the button on the side of the unit.
- Channel, Band and Power LED Indicators. Easily check the VTX Parameters by looking at the quad.
- Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and easily switch to 800 mW for freestyle.
- The 0.5mW Ture Pit Mode allows you to safely power up without the risk of blowing up other pilots.
- Built-in Microphone, no matter how far you fly, you can listen to your motors as they go.
- The standard 36mm form factor allows you to mount the Atlatl directly on the flight controller stack.
How to change Power and Channel?
If you are using Betaflight Flight Controller with buit-in Betaflight OSD, you can manage Atlatl's transmit power and Channel from within OSD.
More information about operation steps, pls read the manual.
Channel Change Button:
Atlatl is designed to be configured with Telemetry. If you are unable to use Telemetry, you can change Channels using the Button creation feature on the VTX's surface.
The button is only intended as a fallback option when Telemetry is unavailable. It would be very tedious to use the button as the primary means of configuring Atlatl.
How to change Power and Channel?
If you are using Betaflight Flight Controller with buit-in Betaflight OSD, you can manage Atlatl's transmit power and Channel from within OSD.
More information about operation steps, pls read the manual.
Channel Change Button:
Atlatl is designed to be configured with Telemetry. If you are unable to use Telemetry, you can change Channels using the Button creation feature on the VTX's surface.
The button is only intended as a fallback option when Telemetry is unavailable. It would be very tedious to use the button as the primary means of configuring Atlatl.
1. Press and hold the button for 2 seconds to switch from Telemetry Mode to Button Mode.
2.Then press the button once to switch to the next channel. There is no separate "Tape" and "Channel" function. Atlatl will go through all 40 Channels it supports.

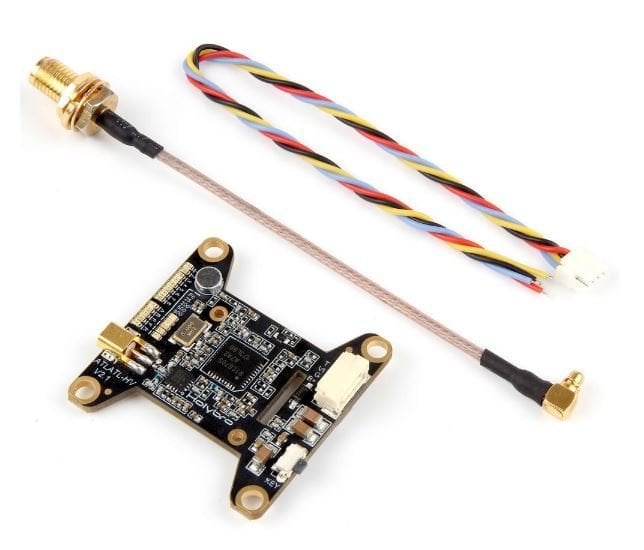

Package Included:
2.Then press the button once to switch to the next channel. There is no separate "Tape" and "Channel" function. Atlatl will go through all 40 Channels it supports.
Package Included:
1x FPV Transmitter Board
1x 80mm SMA to MMCX Cable
1x wire
